Mechanical Dimensions

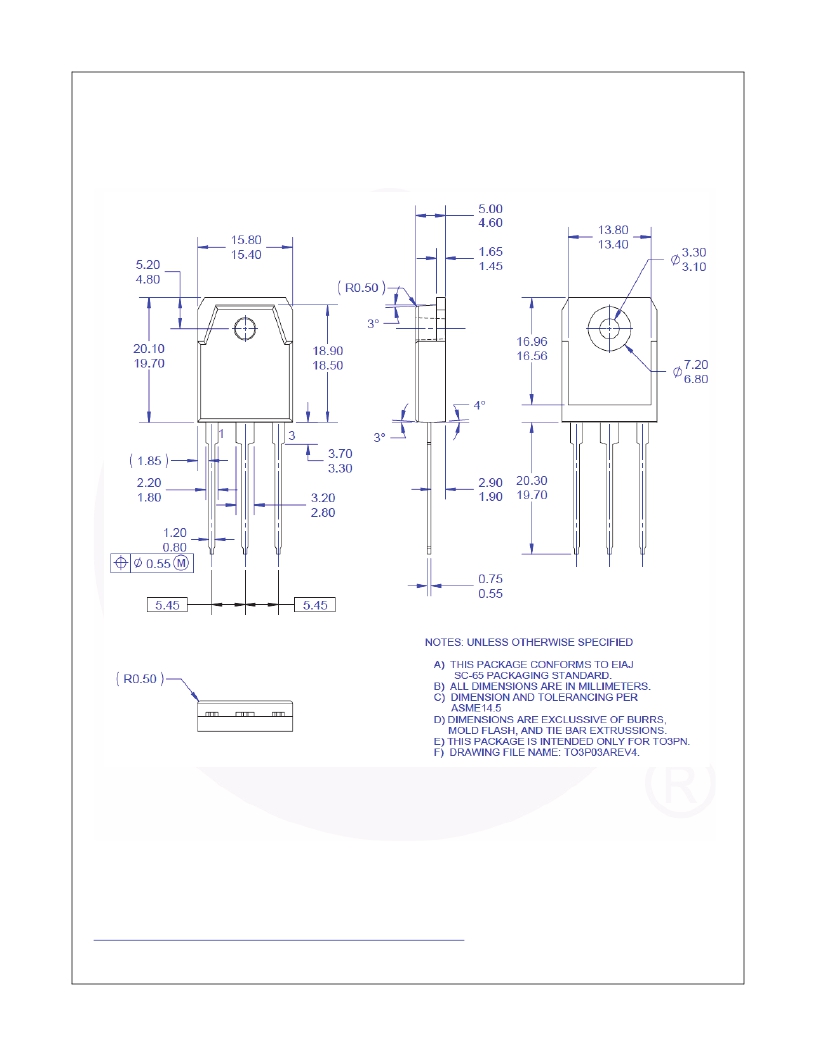

Figure 16 . TO3, 3-Lead, Plastic, EIAJ SC-65
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner
without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or
obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specif-
ically the warranty therein, which covers Fairchild products.
Always visit Fairchild Semiconductor ’s online packaging area for the most recent package drawings:
http://www.fairchildsemi.com/package/packageDetails.html?id=PN_TT3P0-003
?2006 Fairchild Semiconductor Corporation
FQA90N15 Rev C1
7
www.fairchildsemi.com
